Product Details

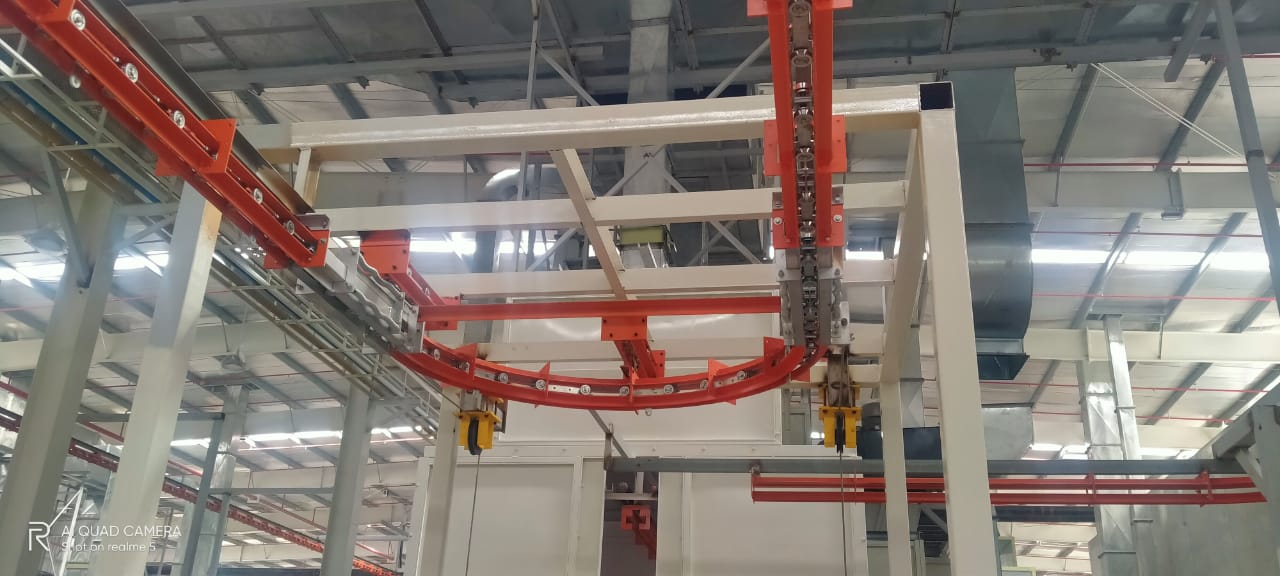

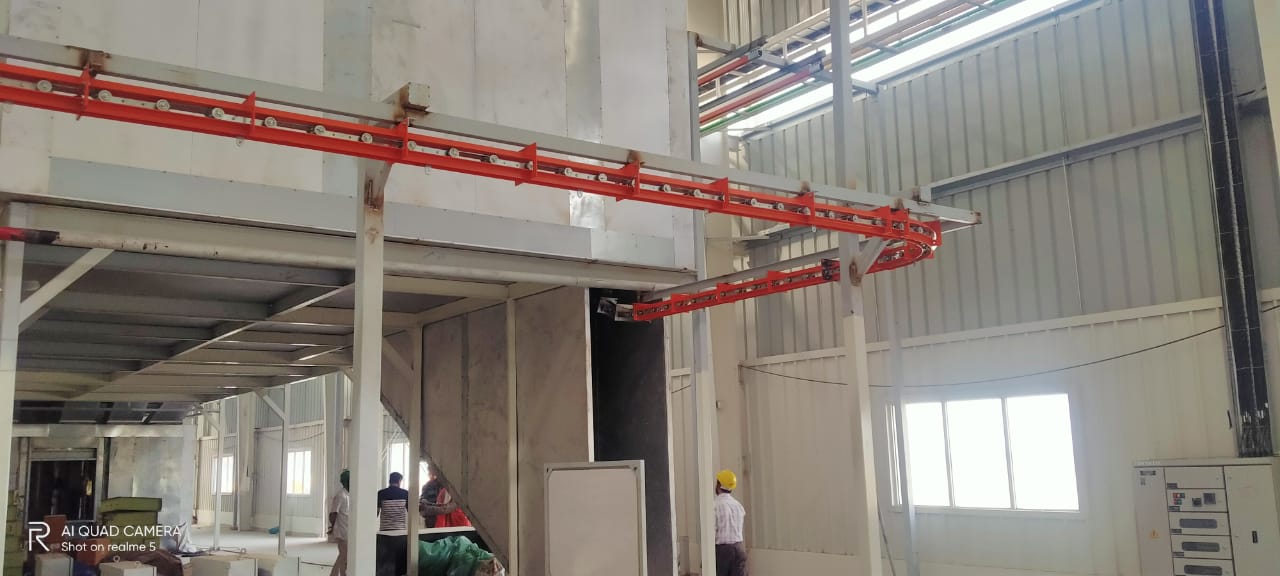

The Bi-Planar or Four-Wheel Chain Conveyor is a rugged, flexible, and reliable material handling system used in assembly lines, paint shops, body shops, and automated production systems. It utilizes specially designed trolleys with four wheels arranged in a two-plane configuration, riding along a modular track with horizontal and vertical articulation.

Ideal for overhead, floor-mounted, or inverted configurations, this system is commonly used where complex paths, tight curves, vertical lifts, or multi-directional movement are required.

Key Features

• Four-Wheel Trolley Design: Provides stability in both vertical and horizontal tracks.
• Robust Chain Drive: Forged steel or cast chain options for heavy-duty use.
• Multi-Plane Flexibility: Handles inclines, declines, and complex routing.
• Stop/Indexing Capability: Ideal for automated workstations.
• Custom Jigs/Fixtures: Adapted for vehicle bodies, engine parts, or general loads.
• Overhead or Inverted: Configurable based on space and process flow.
